How Does a Ribbon Mixer Work?

A ribbon mixer is a highly efficient blending machine designed to mix powders, granules, and light pastes uniformly. Its unique design and operation make it one of the most widely used industrial mixers in industries such as food, pharmaceuticals, chemicals, and building materials.

The Working Principle of a Ribbon Mixer

At the heart of a ribbon mixer is a horizontal or vertical cylindrical trough containing a set of helical ribbons mounted on a central shaft. These ribbons are engineered to move materials in opposite directions, ensuring thorough mixing.

1. Dual-Action Mixing:
   • The outer ribbon moves material in one direction, while the inner ribbon moves it in the opposite direction.
   • This counterflow action ensures the contents are constantly lifted, turned, and folded, achieving a homogeneous mix.
2. Continuous Movement:
   • As the ribbons rotate, materials are continuously shifted from one end of the trough to the other.
   • This movement eliminates dead zones and ensures even mixing of all ingredients.
3. Efficiency in Mixing:
   • Ribbon mixers are ideal for both dry and slightly moist materials, ensuring a fast and efficient blending process.
   • The design prevents segregation of materials, making it perfect for products with varying particle sizes or densities.

Key Components of a Ribbon Mixer

1. Mixing Trough:
   • A horizontal or vertical cylinder that contains the materials.
   • Constructed from materials like 304SS, 316SS, or specialized alloys for sanitary, abrasive, or corrosive applications.
2. Helical Ribbons:
   • Double-layer ribbons (outer and inner) mounted on a shaft.
   • The ribbons are designed to create an efficient flow pattern for uniform blending.
3. Drive System:
   • Powered by an electric motor, the ribbons rotate at optimal speeds for blending.
   • Available in standard, explosion-proof (EXP), or ATEX-compliant designs for hazardous environments.
4. Discharge Valve:
   • Allows for easy and efficient emptying of the mixed material.
   • Options include butterfly valves, slide gates, or pneumatic discharge systems.

Applications of Ribbon Mixers

Ribbon mixers are ideal for a variety of applications:

• Dry Blending: Mixing powders like flour, spices, or chemicals.
• Powder-Liquid Mixing: Adding small amounts of liquid to powders for uniform distribution.
• Moist Mixing: Handling slightly moist or cohesive materials.
• Specialized Processes: Vacuum ribbon mixers can mix, dry, and cool products in a single operation.

Advantages of Ribbon Mixers

1. Uniform Mixing: The counterflow movement of ribbons ensures even distribution of ingredients.
2. Versatility: Suitable for a wide range of materials and industries.
3. Customization: Options like heating/cooling jackets, vacuum systems, and material-specific construction make ribbon mixers adaptable.
4. Scalability: Available in sizes ranging from small lab-scale mixers to large industrial units.

Industries That Benefit from Ribbon Mixers

• Food & Beverage: For blending spices, baking ingredients, and plant-based proteins.
• Pharmaceuticals: Mixing powders for tablets or capsules.
• Chemicals: Uniformly blending chemical powders or granules.
• Building Materials: Handling abrasive materials like mortar and cement additives.

Why Choose PerMix Ribbon Mixers?

PerMix’s ribbon mixers are engineered to provide superior mixing performance with custom solutions for every application. Built with precision, durability, and versatility in mind, PerMix ensures your mixing processes are efficient and effective.

Contact us today to learn more about how PerMix ribbon mixers can optimize your production process!

PerMix PRB Ribbon Mixer consists of one electrical motor, one gearbox, and a shaft with double ribbons located in a U-shaped vessel.

The external & inner ribbons are designed in such a way that the powder materials are pushed to move from center to the two ends of vessel, and meanwhile from ends to the center; besides, the powder materials are lifted up along the ribbon edges but then drop due to gravity.

In such a three-dimensional way, the total powder can be mixed fast in the vessel. It asks for a short mixing time and relatively low power consumption.

Vertical Ribbon Mixer vs. Horizontal Ribbon Mixer: Which is Right for Your Needs?

When choosing the ideal ribbon mixer for your application, understanding the differences and advantages of vertical ribbon mixers versus horizontal ribbon mixers is essential. Both types excel at mixing powders, granules, and light pastes, but each offers distinct benefits depending on the specific requirements of your operation.

Advantages of Vertical Ribbon Mixers

1. Compact Design for Space Efficiency
   • Vertical ribbon mixers are ideal for facilities with limited floor space.
   • Their upright design reduces the horizontal footprint while maintaining excellent mixing performance.
   • Perfect for plants with height availability but restricted room for horizontal equipment.
2. Gentle Mixing Action
   • The vertical configuration ensures a more controlled, gentle mixing process.
   • Ideal for blending fragile or delicate materials that may degrade under more vigorous mixing.
   • Ensures minimal shear forces, making it a superior choice for sensitive ingredients in industries like food, pharmaceuticals, and nutraceuticals.
3. Ease of Cleaning and Maintenance
   • Vertical mixers are easier to clean due to their simplified structure.
   • Ideal for applications requiring frequent product changeovers, such as mixing different powders or formulations.
   • CIP (Clean-In-Place) systems can be integrated for sanitary applications.
4. Efficient Handling of Small Batches
   • Vertical ribbon mixers are particularly suited for small to medium batch sizes.
   • The conical bottom ensures complete discharge of materials, reducing waste and cleaning time.
5. Customizable Features
   • Available with heating and cooling jackets for temperature-sensitive processes.
   • Vacuum options for mixing and drying in one unit.
   • Construction options in 304SS, 316SS, Hastelloy, and more for specific industry needs.

Advantages of Horizontal Ribbon Mixers

1. Faster Mixing Times
   • Horizontal ribbon mixers typically provide faster mixing due to their efficient ribbon design and higher rotation speeds.
   • Suitable for high-volume production where time is critical.
2. Larger Batch Capacities
   • Designed for larger batch sizes, making them ideal for high-output operations.
   • Commonly used in industries requiring bulk production, such as food, chemicals, and building materials.
3. Wide Range of Customizations
   • Heating and cooling jackets for thermal processing.
   • Spray nozzles for liquid addition during mixing.
   • Explosion-proof (EXP) and ATEX-compliant options for hazardous environments.
4. Versatility Across Industries
   • Capable of handling a wide range of materials, from powders and granules to cohesive mixtures.
   • Highly customizable for various industrial applications.

Vertical vs. Horizontal Ribbon Mixer: A Quick Comparison

Which Mixer is Best for Your Application?

• Choose a vertical ribbon mixer if you need a compact design, gentle mixing for delicate materials, or ease of cleaning and maintenance.
• Opt for a horizontal ribbon mixer for high-volume production, faster mixing times, or handling a wide range of material types.

Why Choose PerMix Ribbon Mixers?

PerMix is a global leader in designing and manufacturing vertical and horizontal ribbon mixers. With customizable options, industry-specific materials of construction, and cutting-edge engineering, PerMix ensures you get the perfect solution for your mixing needs.

Contact us today to discuss your requirements and find the best ribbon mixer for your operation!

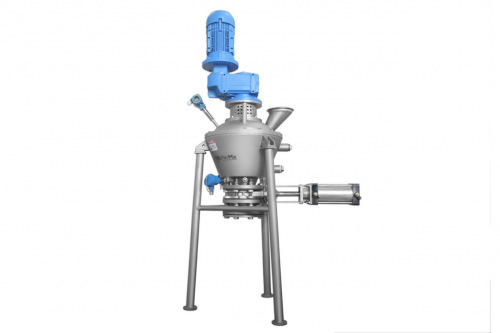

How Does a Vertical Ribbon Mixer Work?

A vertical ribbon mixer operates on a simple yet highly efficient mixing principle, designed to ensure thorough and uniform blending of powders, granules, and even light pastes. Its unique vertical configuration and helical ribbon design make it an excellent choice for gentle, space-efficient mixing across a variety of industries.

The Working Principle of a Vertical Ribbon Mixer

1. Central Helical Ribbon:
   • The vertical ribbon mixer features a central shaft with a helical ribbon wrapped around it.
   • The ribbon is designed to move materials upward along the walls of the mixing chamber.
2. Counterflow Mixing:
   • While the outer ribbon pushes materials upward, gravity naturally pulls them back down toward the center of the mixer.
   • This counterflow action creates continuous circulation, ensuring consistent mixing throughout the entire batch.
3. Conical Mixing Chamber:
   • The vertical, conical design ensures that materials flow smoothly without stagnation or dead zones.
   • The conical bottom also facilitates complete discharge of the mixed material, minimizing waste and simplifying cleaning.
4. Gentle Mixing Action:
   • The slower rotation speed and vertical configuration make the mixing process gentle, reducing shear and preserving the integrity of fragile or delicate materials.
   • This makes vertical ribbon mixers ideal for sensitive products like pharmaceutical powders, nutraceutical blends, or food ingredients.
5. Efficient Material Discharge:
   • The conical bottom and strategically placed discharge valve ensure that all materials are fully mixed and easily discharged.
   • This eliminates product retention and maximizes batch yield.

Key Components of a Vertical Ribbon Mixer

1. Mixing Shaft with Helical Ribbon:
   • The helical ribbon is carefully engineered to move materials in a counterflow pattern, ensuring uniform blending.
2. Vertical, Conical Chamber:
   • The upright design promotes efficient mixing and simplifies the discharge process.
3. Drive System:
   • A powerful motor drives the central shaft at optimized speeds for effective and gentle mixing.
4. Discharge Valve:
   • Typically located at the bottom of the cone for complete material evacuation, available in various designs like slide gates or butterfly valves.
5. Optional Features:
   • Heating or cooling jackets for temperature-sensitive processes.
   • Vacuum systems for mixing and drying in a single unit.
   • CIP (Clean-In-Place) systems for easy cleaning in sanitary applications.

Applications of Vertical Ribbon Mixers

• Pharmaceuticals: Mixing powders and granules with high uniformity while preserving ingredient integrity.
• Food & Beverage: Blending spices, protein powders, and other food ingredients.
• Nutraceuticals: Gentle mixing of delicate herbal or vitamin-based powders.
• Chemicals: Uniform blending of fine powders and granules.

Advantages of a Vertical Ribbon Mixer

1. Space Efficiency: Compact, upright design ideal for facilities with limited floor space.
2. Gentle Mixing: Preserves the structure of delicate or fragile ingredients.
3. Complete Discharge: Conical design minimizes product retention and maximizes yield.
4. Ease of Cleaning: Simplified design with optional CIP systems for easy maintenance.
5. Customizable Features: Available with heating/cooling jackets, vacuum options, and various material constructions (304SS, 316SS, Hastelloy, etc.).

Why Choose PerMix Vertical Ribbon Mixers?

At PerMix, we engineer our vertical ribbon mixers for optimal performance, durability, and efficiency. With customizable options and a focus on quality, our mixers are trusted across industries for blending powders, granules, and more with precision and care.

Contact us today to learn how a PerMix Vertical Ribbon Mixer can elevate your mixing process!

1. High level of accuracy with minor component ratio to be 1:100,000
2. Gentle mixing for sensitive materials without generation of heat
3. No minimal batch size required
4. Full discharge with minimal residue
5. Easy to clean in either dry or wet applications
6. High heat transfer rate, ideal for heating or cooling process of the powders
7. Chopper can be installed for intensive mixing and lump breaking

PerMix Ribbon Mixers with Cantilever Design: Leading the Industry in Cleaning and Maintenance

At PerMix, we understand that cleaning and maintenance are critical factors in industrial mixing equipment. That’s why our ribbon mixers with cantilever design set a new standard for ease of use, efficiency, and hygiene. Designed with innovative features, PerMix ribbon mixers make cleaning and maintenance faster, safer, and more effective, minimizing downtime and maximizing productivity.

What is a Cantilever Design?

A cantilever design eliminates the need for a central shaft support on one end of the mixing trough. Instead, the mixing shaft is supported only on one side, leaving the other side completely open for easy access.

This innovative design enhances the functionality of the mixer, particularly in industries requiring frequent cleaning, product changeovers, or strict hygiene compliance.

How PerMix’s Cantilever Design Improves Cleaning and Maintenance

1. Easy Access to the Mixing Chamber
   • The cantilever design allows the entire end cover of the mixer to swing open, providing full access to the mixing chamber.
   • Operators can easily reach all internal surfaces, including the ribbons and trough, for thorough cleaning.
2. Quick Ribbon Removal
   • The shaft and ribbon assembly can be quickly and easily removed without the need for special tools.
   • This simplifies maintenance and ensures that every component is cleaned effectively, reducing the risk of cross-contamination.
3. Hygienic Design
   • Smooth, polished surfaces and crevice-free construction prevent material buildup and bacteria growth.
   • Ideal for industries such as pharmaceuticals, food, and nutraceuticals that require stringent hygiene standards.
4. Reduced Downtime
   • With its quick-access design, cleaning and maintenance can be completed in a fraction of the time compared to traditional ribbon mixers.
   • Faster turnaround times allow for more frequent product changeovers, improving operational efficiency.
5. Sanitary and CIP-Ready Options
   • PerMix cantilever ribbon mixers can be equipped with Clean-In-Place (CIP) systems for automated cleaning.
   • This is especially beneficial for applications requiring frequent and thorough cleaning, such as allergen-sensitive or pharmaceutical products.

Additional Features of PerMix Cantilever Ribbon Mixers

• Discharge Efficiency: The cantilever design ensures complete product discharge, reducing material waste and making the cleaning process even easier.
• Customizable Options: Available with heating and cooling jackets, vacuum systems, and explosion-proof (EXP/ATEX) configurations.
• Material Construction: Choose from 304SS, 316SS, Hardox, or Hastelloy to meet the specific requirements of your industry and product.

Industries Benefiting from Cantilever Design

• Pharmaceuticals: Ensures contamination-free mixing with easy cleaning for batch changeovers.
• Food & Beverage: Ideal for hygienic mixing of sensitive ingredients, including allergens.
• Nutraceuticals: Quick cleaning between blends of vitamins, powders, or herbal products.
• Chemicals: Efficient handling of abrasive or corrosive materials with reduced maintenance time.

Why PerMix Ribbon Mixers Lead the Industry

1. Innovative Engineering: Our cantilever design reflects our commitment to improving operational efficiency and hygiene.
2. Ease of Use: Cleaning and maintenance have never been easier, thanks to our accessible design.
3. Custom Solutions: Tailored to your industry needs with a range of materials, sizes, and optional features.
4. Global Trust: PerMix ribbon mixers are used by leading manufacturers worldwide.

Contact PerMix Today

If you’re looking for a ribbon mixer that combines high performance with unmatched ease of cleaning and maintenance, PerMix’s cantilever design is the answer. Contact us today to learn more about how our mixers can streamline your production process.

PerMix Ribbon Mixers with Stub Shaft Design: Simplifying Cleaning and Maintenance

At PerMix, we prioritize innovation and efficiency in our mixer designs, which is why our stub shaft design is a standout feature in our ribbon mixers. This advanced engineering solution enhances the cleaning process, minimizes downtime, and ensures high-performance operation across various industries.

What is a Stub Shaft Design?

The stub shaft design eliminates the need for a full-length central shaft, providing unobstructed access to the mixing chamber. This feature allows for easy cleaning, maintenance, and improved hygiene standards. The ribbon assembly is supported by stub shafts on both ends, securely anchored while ensuring maximum accessibility.

Benefits of the Stub Shaft Design in PerMix Ribbon Mixers

1. Unobstructed Access for Cleaning
   • With no central shaft running through the entire mixer, cleaning becomes quicker and more thorough.
   • Operators can easily reach all internal surfaces, ensuring complete removal of residue or contaminants.
2. Simplified Maintenance
   • The stub shaft design allows for easier disassembly of the ribbon and shaft components, reducing maintenance time.
   • Routine checks and part replacements can be conducted without specialized tools, minimizing downtime.
3. Enhanced Hygiene
   • Ideal for industries with stringent sanitation requirements, such as pharmaceuticals and food production.
   • Smooth, polished surfaces and the elimination of hard-to-reach areas prevent material buildup and bacterial growth.
4. Reduced Product Contamination
   • The design minimizes material retention, ensuring complete discharge of the mixed product.
   • Perfect for applications requiring frequent batch changeovers or allergen-sensitive processes.
5. Improved Durability and Performance
   • The stub shafts are engineered for strength and stability, ensuring reliable performance even in heavy-duty applications.
   • Suitable for abrasive, corrosive, or high-viscosity materials.

Industries That Benefit from Stub Shaft Design

• Pharmaceuticals: Ensures easy cleaning between batches, preventing cross-contamination.
• Food & Beverage: Facilitates allergen management and adheres to strict hygiene standards.
• Nutraceuticals: Simplifies cleaning for blending sensitive powders and granules.
• Chemicals: Enhances efficiency when working with abrasive or corrosive substances.

Key Features of PerMix Ribbon Mixers with Stub Shaft Design

1. Quick-Release Assemblies: Simplifies disassembly for cleaning and maintenance.
2. Customizable Materials: Available in 304SS, 316SS, Hardox, Hastelloy, and other industry-specific materials.
3. Sanitary and Hygienic Options: Polished surfaces and CIP-ready configurations for easy cleaning.
4. Optional Features: Heating and cooling jackets, vacuum systems, and ATEX-compliant configurations.

Why Choose PerMix Ribbon Mixers?

1. Innovative Engineering: The stub shaft design is a testament to PerMix’s commitment to operational excellence.
2. Ease of Use: Cleaning and maintenance are significantly simplified, saving time and resources.
3. Custom Solutions: Tailored to meet the specific needs of your industry and application.
4. Proven Performance: Trusted by leading manufacturers worldwide for reliability and efficiency.
